Digital generators for corona treatment

Digital generators alongside with our Corona system are designed and manufactured in Italy.

 The intensity of corona treatment depends on the receptivity of the material. Our generators with integrated control system achieve the high powers needed to treat the most difficult plastic materials, at the highest line speeds.

The software of the generator automatically manages the power circuit, adjusting it according to the line speed.

  • EVO SMART GENERATOR - The new generator can be connected to the FB Cloud platform to receive technical support with remote monitoring and diagnostics and real-time data dashboards
  • EVO LINE GENERATOR - With integrated digital control system, multilingual touch screen control panel TMX | TLX
  • MX SINGLE-PHASE GENERATOR - Available in stand-alone or integrated version with IP20 degree of protection.

Technical features



MX

TMX EVO

TLX EVO

EVO SMART

Installed power

1,2 – 3 KVA

11,5 – 20 KVA

4.0 – 10.0 KVA

5.0 – 16.0 KVA

Output power

1 – 2,7 KW

10 – 18 KW

3.5 – 8.5 KW

4 – 14 KW

Frequency

50/60 Khz

50/60 hZ

50/60 hZ

10 : 25 kHz

Height

250

1650

1000

1450

Width

350

800

600

695

Depth

400

450

450

520

Weight

16

130

90

105

Standard functions

  • Stop/start, constant power control, soft start, sound alarm management, overcurrent limiting.
  • Working frequency display, discharge electrode unit management, power set and output.
  • Manual power adjustment, stop/start minimum speed setting, discharge roller speed detection and display, time display/recorder.
  • Event data recording.

Special functions

  • Discharge density (watts*min/sqm)
  • Autostart management
  • R.P.V. Speed - power adjustment (with possibility of setting infinite proportionality ramps)
  • Skip Treatment: intermittent treatment
  • Wet Start

Signals and alarms

  • Short circuit
  • Overtemperature
  • No ozone suction
  • Loss of treatment
  • Doors opening
  • Pneumatic opening
  • Zero speed
  • Remote control activation

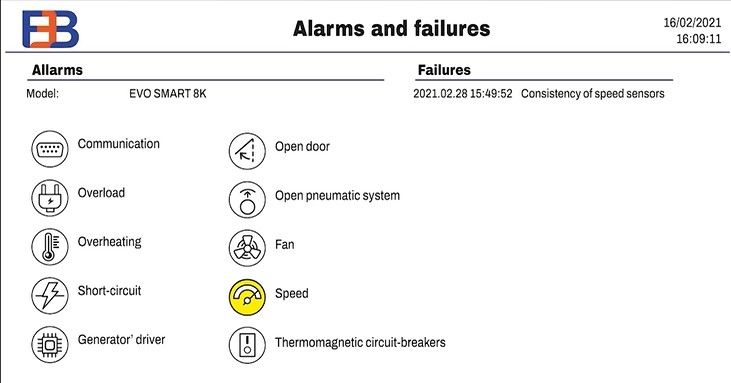

Alarms signals
